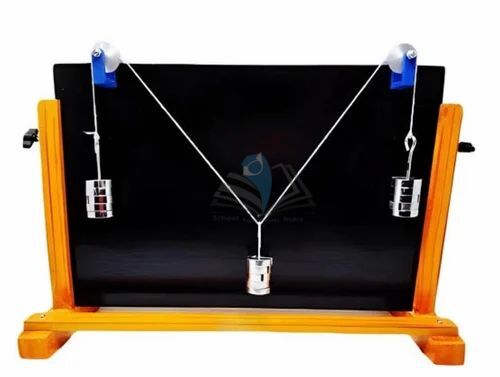

Parallelogram Law Apparatus Gravesand Manufacturer,Supplier and Exporter in India

Product Code : SCL-MF-12373

The Parallelogram Law Apparatus is a physics laboratory apparatus used for verifying the law of parallelogram of forces and determining the resultant of two concurrent forces. It is designed for school physics labs, college practical rooms, STEM classrooms, and teacher-led mechanics experiments using strings, pulleys, and weights.

Product Description

The Parallelogram Law Apparatus | Gravesand by School Equipments helps students study vector addition through a visible force-board arrangement. In a typical experiment, two known forces act at a point through strings and pulleys, while a third force balances the system to establish equilibrium.

This apparatus is suitable for practical mechanics lessons on concurrent forces, resultant force, equilibrant force, vector diagrams, scale drawing, and graphical verification of force laws. The final supplied configuration may include a force board, pulleys, strings, weight hangers, slotted weights, pins, and drawing sheet arrangement; exact material, board size, and weight set should be confirmed before publishing.

Key Features

• Designed for verifying the parallelogram law of forces in school physics laboratories.
• Supports practical study of resultant force and equilibrant force.
• Useful for teaching vector addition through direct graphical construction.
• Helps students connect force magnitude, direction, and angle in one experiment.
• Suitable for school, college, STEM, and teacher-training laboratories.
• Can be used with pulleys, strings, weight hangers, slotted weights, and drawing sheets, subject to final supply.
• Board size, pulley type, weight capacity, and included accessories should be verified from the supplied apparatus.

Technical Specifications

What's Included in the Kit

• Parallelogram Law Apparatus / Gravesand force board
• Pulley arrangement [confirm quantity]
• Strings or cords
• Weight hangers
• Slotted weights
• Central ring, pin, or knot arrangement
• Instruction sheet or experiment guide

Applications / Uses

• Verifying the parallelogram law of forces experimentally.
• Determining the resultant of two concurrent forces.
• Comparing calculated, graphical, and observed force equilibrium results.
• Teaching vector addition and force direction in mechanics lessons.
• Demonstrating equilibrant force using suspended weights.
• Supporting school and college practical work in statics and mechanics.

How to Use the Parallelogram Law Apparatus | Gravesand

1. Place the apparatus vertically or on the supplied support as per the experiment guide.
2. Fix the drawing sheet to the force board if graphical plotting is required.
3. Pass strings over the pulleys and attach weight hangers to apply known forces.
4. Adjust the weights until the central ring or knot remains in equilibrium.
5. Mark the directions of the three forces on the sheet.
6. Draw vectors to scale and complete the parallelogram construction.
7. Compare the diagonal resultant with the balancing force to verify the law.

Safety note: use stable mounting, avoid sudden release of weights, and keep hands clear of falling hangers and moving pulleys during the experiment.

Care & Maintenance

• Store pulleys, strings, and weights together after each practical session.
• Check that pulley wheels rotate freely before use.
• Replace frayed strings or bent hooks to maintain reliable force alignment.
• Keep the board dry and flat to support accurate marking and drawing.

Why Choose School Equipments

School Equipments supplies physics laboratory apparatus, mechanics equipment, science kits, didactic models, and STEM teaching aids for educational institutions. The Parallelogram Law Apparatus is intended for hands-on mechanics teaching where students can verify force laws through real equilibrium observations. School Equipments supports school, college, and export requirements with education-focused laboratory products. Product-specific board size, material, weight set, and supplied accessories should be verified before final quotation or publication.

Frequently Asked Questions

What is the Parallelogram Law Apparatus used for?

The Parallelogram Law Apparatus is used to verify the law of parallelogram of forces and determine the resultant of two concurrent forces.

What is Gravesand apparatus?

Gravesand apparatus is a force-board arrangement used in mechanics practicals to demonstrate vector addition and equilibrium of forces using strings, pulleys, and weights.

Is this apparatus suitable for school physics laboratories?

Yes. It is suitable for school physics labs, college practical rooms, STEM classrooms, and teacher-led mechanics demonstrations.

Does the kit include slotted weights?

The supplied product data does not confirm the final weight set. Add exact slotted weight values and quantity only after checking the supplied kit.

What principle does this apparatus verify?

It verifies that two forces acting at a point can be represented by adjacent sides of a parallelogram, and their resultant is represented by the diagonal through that point.

What category should this product be listed under?

This product should be listed under physics laboratory equipment, motion and forces apparatus, mechanics apparatus, and force-equilibrium experiment kits.
