Ohm Meter Shunt Type Analog Manufacturer,Supplier and Exporter in India

Product Code : SCL-EE-12446

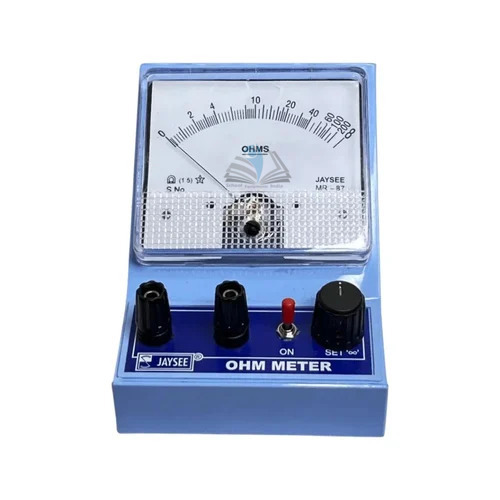

The Ohm Meter Shunt Type Analog is an electrical measuring instrument used for studying resistance measurement by connecting the unknown resistance in a shunt path across the meter circuit. It is designed for school physics labs, electronics practicals, college laboratories, and TVET training where students learn analogue meter behaviour and resistance testing.

Product Description

The Ohm Meter Shunt Type Analog by School Equipments is made for practical electricity and measurement experiments. It helps learners understand resistance, meter deflection, shunt measurement principle, internal battery use, zero adjustment, and the difference between series-type and shunt-type ohmmeter operation.

This apparatus belongs to Electricity & Electromagnetism lab equipment and supports classroom activities where students measure unknown resistors, compare values, and study analogue scale response. Exact resistance range, scale marking, meter movement, battery requirement, terminals, probes, accuracy, and enclosure material should be confirmed from the final manufacturer datasheet before publishing.

Key Features

• Shunt-type measurement principle: Demonstrates resistance measurement using a parallel or shunt circuit arrangement.
• Analog scale learning: Helps students understand pointer deflection, non-linear resistance scale reading, and zero adjustment.
• Resistance testing practice: Suitable for checking unknown resistors and comparing practical readings with theoretical values.
• Classroom-friendly apparatus: Useful for school physics labs, electronics labs, STEM rooms, and vocational training centres.
• Ohm’s law support: Reinforces the relationship between voltage, current, and resistance in basic circuit lessons.
• Component details: Meter movement, battery, shunt path, probes, terminals, scale, and enclosure are .
• Safe measurement habit: Intended for resistance checks only on isolated, switched-off, and de-energised components.

Technical Specifications

What's Included in the Kit

• Ohm Meter Shunt Type Analog main unit
• Analog meter scale and pointer assembly
• Test terminals or probe sockets
• Pair of test leads or probes
• Internal battery or power accessory
• Instruction sheet, manual, or experiment guide

Applications / Uses

• Measuring unknown resistance in school electricity experiments
• Demonstrating the working principle of a shunt-type ohmmeter
• Teaching analogue meter deflection and resistance scale interpretation
• Checking resistor values before Ohm’s law and circuit practicals
• Comparing resistance readings with known standard resistance units
• Using with related products such as the Decade Resistance Unit, Resistance Unit, BEK Rheostat Variable, and Component Tester

How to Use the Ohm Meter Shunt Type Analog

1. Confirm the resistance range, power source, scale type, and zero-adjust procedure before use.
2. Switch off and disconnect the circuit or component before measuring resistance.
3. Connect the test leads to the ohm meter terminals as instructed in the manual.
4. Check the pointer position and perform zero adjustment if the model supports it.
5. Connect the unknown resistor across the test terminals.
6. Read the resistance value from the analog scale and record the unit carefully.
7. Remove the probes and store the meter after the measurement is complete.

Safety note: Do not use an ohm meter on live circuits, charged capacitors, or mains-connected equipment. Resistance measurement must be done only on isolated and de-energised components.

Care & Maintenance

• Store the meter in a dry cabinet or protective case after use.
• Keep probes, terminals, scale window, and adjustment controls clean and dust-free.
• Replace the internal battery only with the confirmed recommended type.
• Do not overload terminals, drop the meter, or use damaged test leads.

Why Choose School Equipments

School Equipments manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM training equipment. The Ohm Meter Shunt Type Analog is positioned for institutions that need a practical resistance-measurement apparatus for classroom and laboratory instruction. The brand supports school, college, university, and vocational buyers with educational laboratory equipment. Final ratings and supplied accessories should always be checked against the official quotation or datasheet before procurement.

Frequently Asked Questions

What is an Ohm Meter Shunt Type Analog used for?

An Ohm Meter Shunt Type Analog is used to measure unknown electrical resistance and demonstrate the shunt-type analogue ohmmeter principle in laboratory experiments.

How does a shunt-type ohmmeter work?

In a shunt-type ohmmeter, the unknown resistance is connected in a parallel path with the meter circuit, causing meter deflection to change with resistance value.

Is this meter suitable for school physics labs?

Yes, it is suitable for supervised school, college, electronics, and TVET laboratories where students learn resistance measurement and analogue meter principles.

Can it be used for Ohm’s law experiments?

Yes, it can be used to check resistor values before or after Ohm’s law experiments so students can compare measured and calculated resistance.

Can an ohm meter measure resistance in a live circuit?

No. Resistance should be measured only when the circuit is switched off and disconnected from power. Live-circuit measurement can damage the meter and create a hazard.

What should buyers confirm before ordering?

Buyers should confirm resistance range, scale type, accuracy, battery requirement, probes, zero-adjust control, dimensions, material, and supplied accessories.

For related resistance and circuit measurement products, explore more Electricity & Electromagnetism lab equipment from School Equipments.
