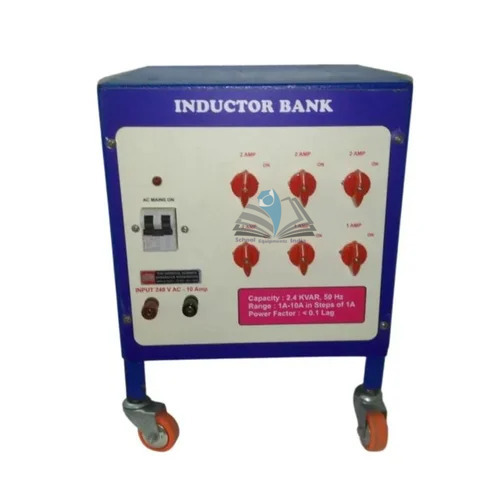

Loading Inductor 2.4KVAR Bank Manufacturer,Supplier and Exporter in India

Product Code : SCL-EE-12427

The Loading Inductor 2.4KVAR Bank is an inductive load apparatus used for AC circuit experiments, reactive power demonstration, and power factor study in physics, electrical engineering, and TVET laboratories. It helps students observe how inductive loads affect current, phase angle, reactive power, and electrical system behavior.

Product Description

The Loading Inductor 2.4KVAR Bank by School Equipments is designed for practical demonstrations where a controlled inductive load is required. It is suitable for experiments involving AC load behavior, lagging current, inductive reactance, apparent power, reactive power, and power factor correction principles.

This product belongs to Electricity & Electromagnetism lab equipment and supports advanced electrical training in schools, colleges, engineering labs, and vocational institutes. Exact voltage rating, current rating, phase type, inductance steps, switching method, enclosure material, terminals, and duty cycle should be confirmed from the final manufacturer datasheet before publishing.

Key Features

• 2.4 kVAR capacity: Provides a supplied reactive load capacity of 2.4 kVAR for AC laboratory demonstrations.
• Inductive load behavior: Demonstrates lagging current, inductive reactance, and phase difference in AC circuits.
• Power factor training: Useful for showing how inductive loads affect apparent power, real power, and reactive power.
• Laboratory-ready learning value: Helps students connect electrical theory with practical meter readings.
• Compatible instrument use: Can be used with suitable voltmeters, ammeters, wattmeters, power factor meters, and energy meters after rating verification.
• Construction details: Coil material, enclosure, terminal type, insulation class, and switching arrangement are [confirm].
• Safe supervised operation: Intended for trained laboratory use with rated wiring, ventilation, insulation, and circuit protection.

Technical Specifications

What's Included in the Kit

• Loading Inductor 2.4KVAR Bank main unit
• Input and output terminals
• Load step switches or selector arrangement
• Operating manual or datasheet
• Test leads, connectors, or accessories

Applications / Uses

• Demonstrating inductive load behavior in AC circuits
• Studying reactive power, apparent power, and lagging power factor
• Supporting power factor correction experiments in electrical labs
• Training students on phase difference between voltage and current
• Using with suitable electrical meters and training panels after rating confirmation
• Supporting experiments alongside the Electromagnetics Kit, Mains Coil for Dissectible Transformer, and Plug-In Electricity Cost Monitor

How to Use the Loading Inductor 2.4KVAR Bank

1. Confirm the voltage, current, phase type, kVAR rating, and duty cycle before use.
2. Place the inductor bank on a dry, stable, and ventilated laboratory bench.
3. Connect the unit into the AC circuit according to the approved experiment diagram.
4. Connect compatible voltmeters, ammeters, wattmeters, and power factor meters as required.
5. Switch on the supply and apply the inductive load only within confirmed safe limits.
6. Record voltage, current, wattage, power factor, and reactive power observations.
7. Switch off the supply before changing connections, adjusting wiring, or handling terminals.

Safety note: A 2.4 kVAR inductive load bank must be used only under qualified supervision. Use rated cables, proper insulation, ventilation, earthing where applicable, and suitable circuit protection.

Care & Maintenance

• Keep the inductor bank clean, dry, and protected from moisture.
• Inspect terminals, switches, coil housing, wiring, and insulation before every experiment.
• Allow the unit to cool after operation before handling or storage.
• Do not exceed the confirmed voltage, current, kVAR, phase, or duty-cycle rating.

Why Choose School Equipments

School Equipments manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM training equipment. The Loading Inductor 2.4KVAR Bank is positioned for institutions that need practical AC electrical load apparatus for training and demonstration. The brand supports school, college, university, and vocational buyers with educational laboratory equipment. Final ratings and supplied accessories should always be checked against the official quotation or datasheet before procurement.

Frequently Asked Questions

What is a Loading Inductor 2.4KVAR Bank used for?

A Loading Inductor 2.4KVAR Bank is used to demonstrate inductive AC load behavior, reactive power, lagging current, and power factor in electrical laboratory circuits.

What does 2.4 kVAR mean in this product?

2.4 kVAR indicates the supplied reactive power capacity of the inductive load bank. Voltage, current, phase type, and duty cycle must be confirmed separately.

Is this loading inductor suitable for school laboratories?

Yes, it is suitable for supervised school, college, engineering, and TVET laboratories when operated within confirmed electrical ratings.

Can it be used for power factor experiments?

Yes, an inductive load bank is useful for demonstrating lagging power factor and comparing real, reactive, and apparent power in AC circuits.

What instruments are used with a Loading Inductor 2.4KVAR Bank?

Compatible voltmeters, ammeters, wattmeters, power factor meters, and energy meters may be used if their ratings match the experiment circuit.

What material is used in the inductor bank?

The exact coil, core, enclosure, terminal, and insulation materials are not supplied. These details should be confirmed before final publishing or tender submission.

For related apparatus, explore more Electricity & Electromagnetism lab equipment and the Solenoid Superior range from School Equipments.
