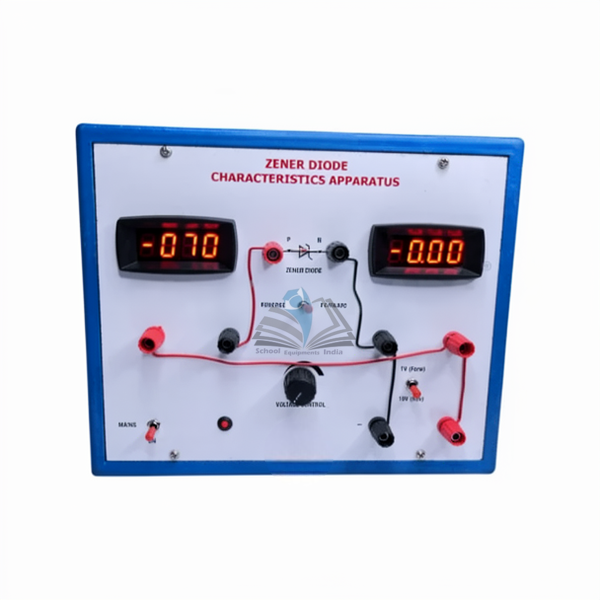

Digital Zener Diode Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-EE-12441

The Digital Zener Diode Apparatus is an electronics laboratory trainer used for studying Zener diode V-I characteristics, reverse breakdown voltage, voltage regulation, and current-voltage behaviour in school, college, engineering, and TVET laboratories. It helps learners plot forward and reverse characteristics and understand how a Zener diode works as a voltage reference device.

Product Description

The Digital Zener Diode Apparatus by School Equipments is designed for hands-on semiconductor electronics experiments. It is used to demonstrate forward bias, reverse bias, Zener breakdown, voltage regulation, dynamic resistance, and the relationship between diode voltage and diode current under guided laboratory conditions.

This apparatus belongs to Electricity & Electromagnetism lab equipment and supports physics, electronics, electrical engineering, and vocational training practicals. Exact Zener voltage range, supply range, current range, display type, meter accuracy, terminals, and supplied accessories should be confirmed from the final manufacturer datasheet before publishing.

Key Features

• Zener diode characteristic study: Supports practical observation of forward and reverse V-I characteristics.
• Breakdown voltage learning: Helps students identify the Zener voltage region during reverse-bias operation.
• Voltage regulation demonstration: Useful for explaining how a Zener diode can maintain a near-constant voltage in suitable circuits.
• Curve plotting support: Allows learners to record voltage and current readings for graph-based practical work.
• Digital apparatus format: Digital display, meter arrangement, and measurement resolution are .
• Laboratory suitability: Suitable for school electronics labs, college physics labs, engineering labs, and TVET workshops.
• Safe educational use: Intended for low-voltage semiconductor experiments under teacher or instructor supervision.

Technical Specifications

What's Included in the Kit

• Digital Zener Diode Apparatus main unit
• Zener diode test circuit section
• Voltage and current control arrangement
• Input and output terminals
• Built-in or external digital meters
• Patch cords, manual, or datasheet

Applications / Uses

• Plotting forward-bias and reverse-bias V-I characteristics of a Zener diode
• Studying Zener breakdown voltage and reverse current behaviour
• Demonstrating voltage regulation using a semiconductor diode circuit
• Teaching diode polarity, current limiting, and safe measurement practice
• Supporting semiconductor-device lessons in physics and electronics labs
• Using with related products such as the Alpha Electronics Physics Students Kit, Component Tester, Simple Circuit Module Red LED Board, and Digital Multimeter

How to Use the Digital Zener Diode Apparatus

1. Confirm the Zener diode rating, voltage range, current range, polarity, and circuit configuration before use.
2. Place the apparatus on a dry, stable electronics-lab bench.
3. Connect the circuit according to the approved Zener diode experiment diagram.
4. Set the supply and current control to their lowest safe starting values.
5. Increase the voltage gradually and record diode voltage and diode current readings.
6. Plot the readings to identify forward characteristics, reverse breakdown, and regulation behaviour.
7. Switch off the supply before changing connections or replacing semiconductor components.

Safety note: Use the apparatus only within confirmed low-voltage and low-current ratings. Incorrect polarity, excessive current, or missing current limiting can damage the Zener diode and connected meters.

Care & Maintenance

• Keep the apparatus clean, dry, and protected from dust.
• Inspect terminals, sockets, knobs, patch cords, and displays before each practical session.
• Do not exceed confirmed Zener diode voltage, current, or power limits.
• Store the unit in a dry electronics-lab cabinet after use.

Why Choose School Equipments

School Equipments manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM training equipment. The Digital Zener Diode Apparatus is positioned for institutions that need a practical semiconductor electronics trainer for classroom and laboratory instruction. The brand supports school, college, university, and vocational buyers with educational laboratory equipment. Final ratings and supplied components should always be checked against the official quotation or datasheet before procurement.

Frequently Asked Questions

What is a Digital Zener Diode Apparatus used for?

A Digital Zener Diode Apparatus is used to study Zener diode V-I characteristics, breakdown voltage, reverse current behaviour, and voltage regulation.

Can students plot Zener diode characteristics with this apparatus?

Yes, students can record diode voltage and diode current readings and use them to plot forward and reverse Zener diode characteristic curves.

Is this apparatus suitable for school electronics labs?

Yes, it is suitable for supervised school, college, engineering, and TVET electronics labs when operated within confirmed electrical ratings.

What is Zener breakdown in this experiment?

Zener breakdown is the reverse-bias region where the Zener diode begins conducting strongly near its rated Zener voltage while maintaining a near-constant voltage.

Can it demonstrate voltage regulation?

Yes, it can support voltage regulation experiments if the supplied circuit includes suitable current limiting, load connection, and rating-compatible components.

What accessories are supplied with the apparatus?

Supplied accessories such as patch cords, Zener diode samples, meters, manuals, or experiment sheets are not confirmed. Add only verified kit contents before final publishing.

For related electronics teaching apparatus, explore more Electricity & Electromagnetism lab equipment from School Equipments.
