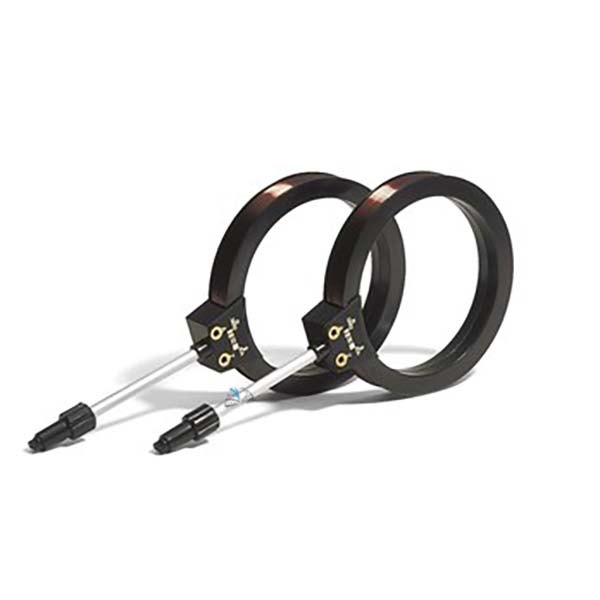

Helmholtz Coils
Product Code : EL-AS-10809
Product Description
The maximum field strength generated by the coils (~ 10 mT) is approximately 300 times weaker than that produced by an MRI machine (~ 3T), which are known to be safe for use by people with medical implants such as pacemakers.
A pair of Helmholtz Coils for generating a uniform magnetic field perpendicular to the axis of the Teltron D series tubes.
The Teltron Tube Holder D allows the coils to be configured in the Helmholtz geometry or to produce magnetic fields aligned vertically, or coaxial, with respect to the tube axis.
Technical Specifications:
Requires a 20V Power Supply and 4mm Leads
Number of turns: 320
Max. field strength: approx. 10 mT
Max. continuous current: 1.0 A
Max. momentary current: 10 min @ 1.5 A; 3 min @ 2 A
Effective impedance: 6O
Connectors: 4mm sockets
Further Information
Connectors
4mm Sockets
Curriculum Link
Atomic Physics
Effective
Impedance
60
Maximum
Continuous Current
1.0A
Maximum Field
Strength
10mT
Maximum
Momentary Current
10 min @ 1.5 A;
3 min @ 2 A
Number of Coils
320
Product Type
Helmholtz Coils
