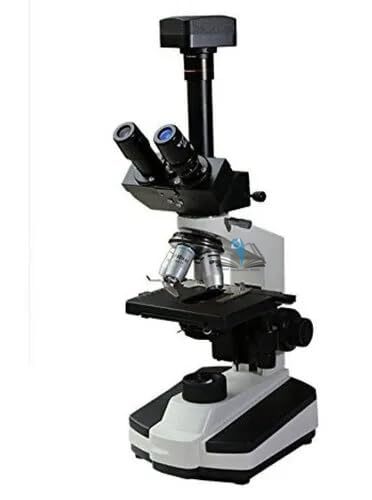

Digital Trinocular Microscope with 2MP USB Camera

Product Code : SCL-MA-12231

The Digital Trinocular Microscope with 2MP USB Camera is an educational laboratory microscope used for viewing, capturing, and teaching microscopic specimens through binocular observation and digital image output. It is designed for schools, colleges, biology laboratories, STEM classrooms, and teacher-led demonstrations that require live specimen visualisation.

Product Data

Product Description

The Digital Trinocular Microscope with 2MP USB Camera combines a trinocular LED microscope with digital imaging capability. Students can use the binocular eyepieces for direct observation while teachers can connect the camera for classroom display, image capture, and video output without interrupting the microscope setup.

The microscope provides up to 1000x magnification with WF10X/18mm eyepiece, 4X, 10X, 40X, and 100X objectives, coaxial coarse and fine focusing, and 3W X-LED illumination with adjustable intensity. For complete microscopy teaching, it can be used with microscopes and accessories, prepared microscope slides, biology lab equipment, and STEM lab kits.

Key Features

• Trinocular microscope configuration for student viewing and teacher-supported demonstration.
• Up to 1000x magnification for school and college microscopy practicals.
• 2MP USB camera for picture and video output during digital lessons.
• 3W X-LED illumination with adjustable intensity for transmitted light observation.
• Coaxial coarse and fine focusing system for controlled image adjustment.
• USB 2.0 camera connection with removable mini USB cable.
• Suitable for prepared slides, cells, tissues, microorganisms, and classroom projection.

Technical Specifications

What's Included in the Kit

• 1 Trinocular LED Microscope
• 1 2MP USB microscope camera
• Removable mini USB cable
• Instruction manual
• Power supply
• Dust cover
• Software or driver media

Applications / Uses

• Viewing prepared microscope slides in biology and general science laboratories.
• Capturing still images and videos of specimens for classroom explanation.
• Teaching cells, tissues, microorganisms, plant sections, and stained specimens.
• Supporting teacher demonstrations without changing student microscope settings.
• Displaying microscope output on a computer for group observation.
• Using with structure and function of living organisms resources and educational lab equipment.

How to Use the Digital Trinocular Microscope with 2MP USB Camera

1. Place the microscope on a stable laboratory bench and connect the power supply.
2. Place the prepared slide on the stage and start with the 4X objective.
3. Adjust the 3W X-LED illumination and focus the specimen using coarse and fine controls.
4. Increase magnification step by step only after the specimen is centred.
5. Insert the 2MP USB camera into the eyepiece tube and connect the mini USB cable to the computer.
6. Open the compatible camera software and capture images or videos for teaching records.

Carry the microscope with both hands, avoid touching optical surfaces, and never force objectives, focusing knobs, cables, or camera fittings.

Care & Maintenance

• Clean lenses only with lens cleaning tissue or approved optical paper.
• Use the dust cover after every lesson to protect optical and mechanical parts.
• Store the microscope upright in a dry cabinet away from chemicals and moisture.
• Disconnect the USB camera and power supply carefully before storage.

Why Choose School Equipments

School Equipments supplies microscopes, microscope accessories, biology teaching aids, laboratory instruments, science kits, and STEM learning products for educational institutions. The brand supports schools, colleges, laboratories, and distributors with practical equipment for classroom science and microscopy work.

The company’s microscope range includes compound, monocular, binocular, trinocular, stereo, digital, and USB microscopy options for educational laboratories. Buyers can review the School Equipments company profile for manufacturer and exporter information.

Frequently Asked Questions

What is a Digital Trinocular Microscope with 2MP USB Camera used for?

It is used to observe microscope slides directly through eyepieces and digitally capture specimen images or videos through a 2MP USB camera.

What magnification does this microscope provide?

The trinocular LED microscope provides magnification up to 1000x using WF10X/18mm eyepiece and 4X, 10X, 40X, and 100X objectives.

What is the camera resolution?

The included microscope camera has 2MP resolution and supports picture and video output through USB 2.0.

Is it suitable for school and college biology labs?

Yes. It is suitable for school biology labs, college laboratories, STEM classrooms, and teacher-led digital microscopy demonstrations.

Which computer systems are compatible with the camera?

The listed camera compatibility includes Windows Vista, Windows 7, Windows 8, and Windows 10 in 32-bit or 64-bit versions.

Does the kit include a dust cover and power supply?

Yes. The verified microscope accessories include an instruction manual, power supply, and dust cover.

For digital microscopy demonstrations, school biology practicals, and specimen image capture, choose the Digital Trinocular Microscope with 2MP USB Camera from School Equipments and browse more microscopes and accessories.
